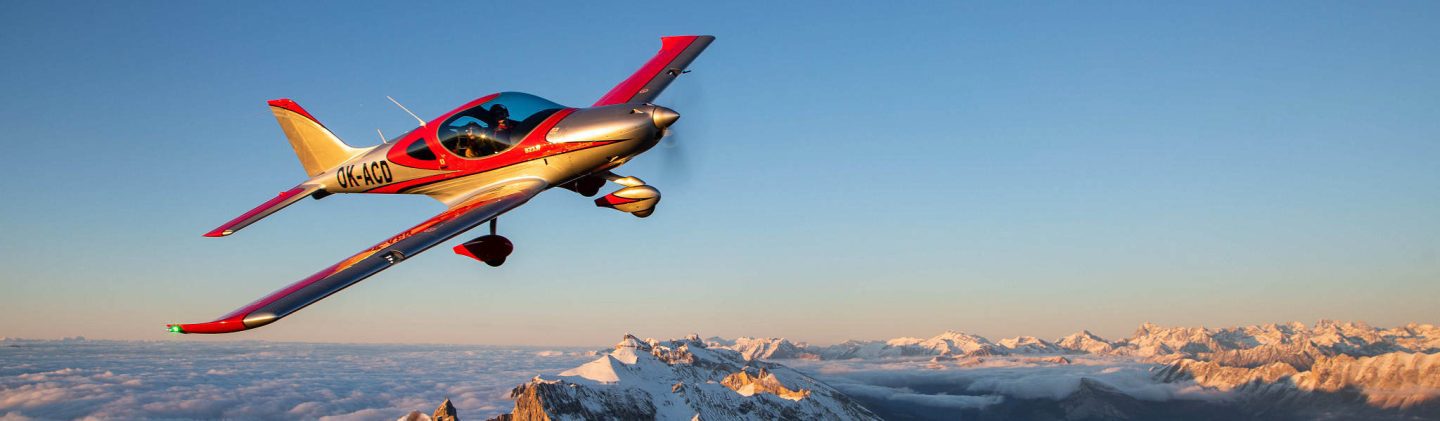

Bristell B23 Turbo

Bristell B23 Turbo

The Bristell B23 TURBO is a modern, low-wing airplane and designed in accordance with the European CS23/U.S. FAR 23 Certification.

While the B23 looks like the CLASSIC B.LSA, there is in fact more to the design. The BRISTELL Manufacturing company based in Kunovice, Chez Republic says it “listened to the feedback of many happy B-owners worldwide” before designing the new aircraft.

  • FUSELAGE is longer
  • The tail is larger, with an aluminium rudder
  • The flaps & stabiliser are bigger and more efficient
  • The composite main landing gear legs have been redesigned to carry much heavier loads
  • Improved aircraft’s handling characteristics
  • Trim tab function on the twin elevator to assist pilot to optimise the forces on the control stick
  • Basic equipment includes a steerable nose wheel and a BRS ballistic parachute rescue system
  • The standard-equipped aircraft also meets the night-VHR requirements and can be upgraded to meet IFR requirements
High altitude performance

FL120, 5000 rpm, 70% power FF 26,7 TAS 240 km/h
4800 rpm, 75% power FF29,5, TAS 250 km/h
Maximum cruise speed at FL120, TAS 283 km/h
Climb from 4000 feet to 14000feet – 1450 feet/min on 160Km/h, pitch +8 degree.
Maximum cruise speed in FL140 291 km/h TAS

Just for fun flying

Enjoy high performance thanks to the combination of the ROTAX engine and the MT propeller. Enjoy great views from the cabin. Fly fast and sporty – agility and excellent response to aircraft control will be on your side.

Travelling

Fly away, you have a long range of 600 NM. Pack even that thick book for reading, you can take up to 55 kg of luggage on the plane. Fly comfortably at any time, even at night.

Fly Any Time, Even at Night

BRISTELL B23 Turbo is also certified for night flights under VFR conditions. Enjoy a quiet night flight in a certified airplane with dual glass cockpit and Garmin autopilot.

BRISTELL B23 Turbo Technical Data

Dimensions

Wing span – 9.274 m
Wing area – 11.75 m2
Wing loading – 63.82 kg/m2
Aircraft length – 6.585 m
Aircraft height – 2.36 m
Cabin width – 1.3 m

Weight

Empty weight – 465 kg
Maximum take-off weight (MTOW) – 750 kg
Useful load – 285 kg
Fuel tanks capacity – 120 l
Fuselage luggage compartment – 15 kg
Wing luggage compartment – 2 x 20 kg
Load factor – +4/-2g

Airspeed, Climb and Cruise performance

Stall speed without flaps VS1 – 50 KCAS (MTOW 750 kg)
Stall speed with flaps VS0 – 43 KCAS (MTOW 750 kg)
Manoeuvring speed VA – 98 KCAS
Maximum flap speed VFE – 81 KCAS
Maximum horizontal flight speed VH FL140 – 157 KTAS
Never exceeded speed VNE – 156 KCAS
Best rate of climb speed Vy (flaps retracted), MTOP – 82 KIAS
Best rate of climb (flaps retracted), MTOP – 1260 ft / min
Best angle of climb speed Vx, MTOP – 66 KIAS
Best rate of climb speed Vy (flaps 10°), MTOP – 84 KIAS
Best rate of climb (flaps 10°), MTOP – 1195 ft / min
Take-off distance (ground roll) – 176 m
Take-off distance over 15 m (50 ft) obstacle – 331 m
Landing distance (ground roll) – 146 m
Landing distance from 15 m (50 ft) height – 391 m
All data at MTOW 750 kg

BRISTELL 23 Turbo – Equipment
What you will find in the equipment of the BRISTELL B23 Turbo airplane?
Basics
  • BRISTELL B23 RTF CS-23-Light

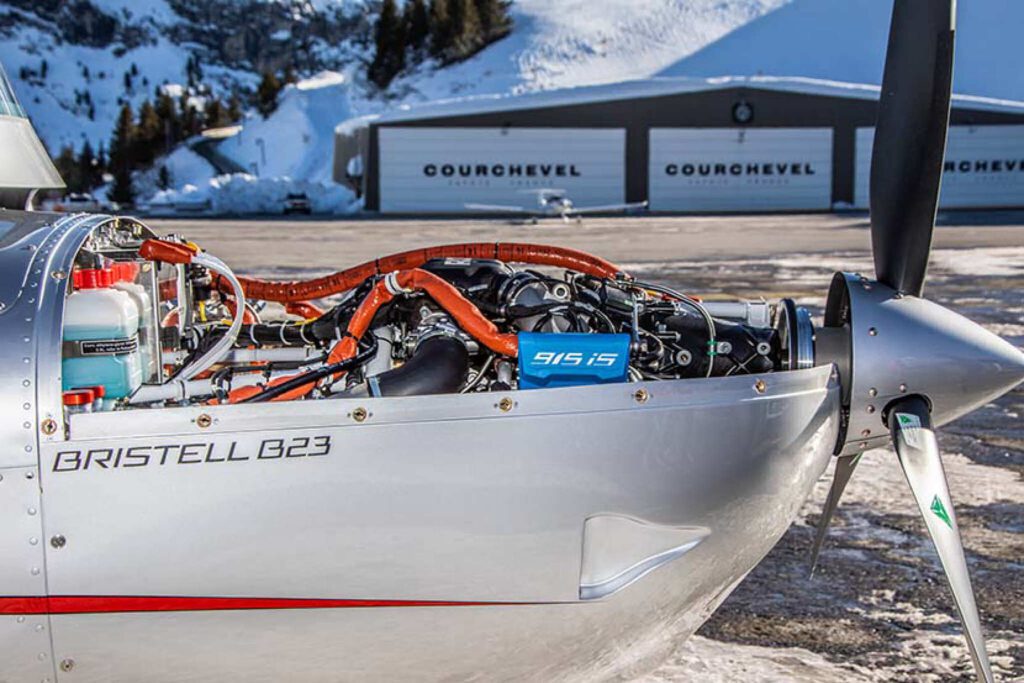

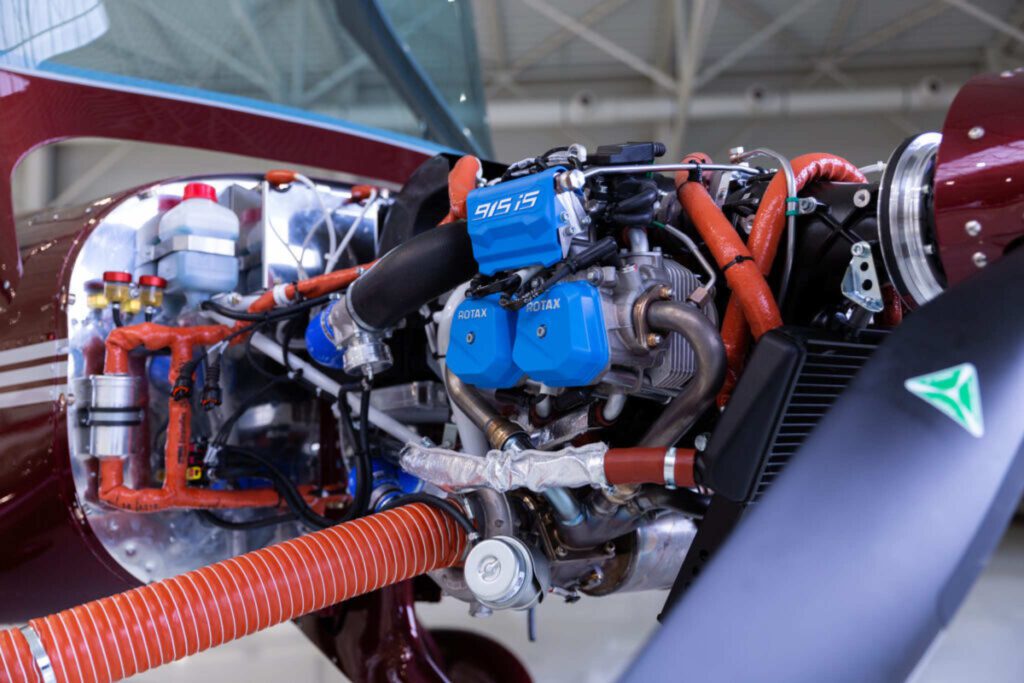

  • ROTAX 915 iSc (141HP)
  • In flight adjustable propeller MTV-34-1-A/175-200 hydraulic constant speed
  • One colour paint
  • Night VFR
  • Included all documents for registration
  • Flight manual
  • Maintenance manual
  • Engine Manual

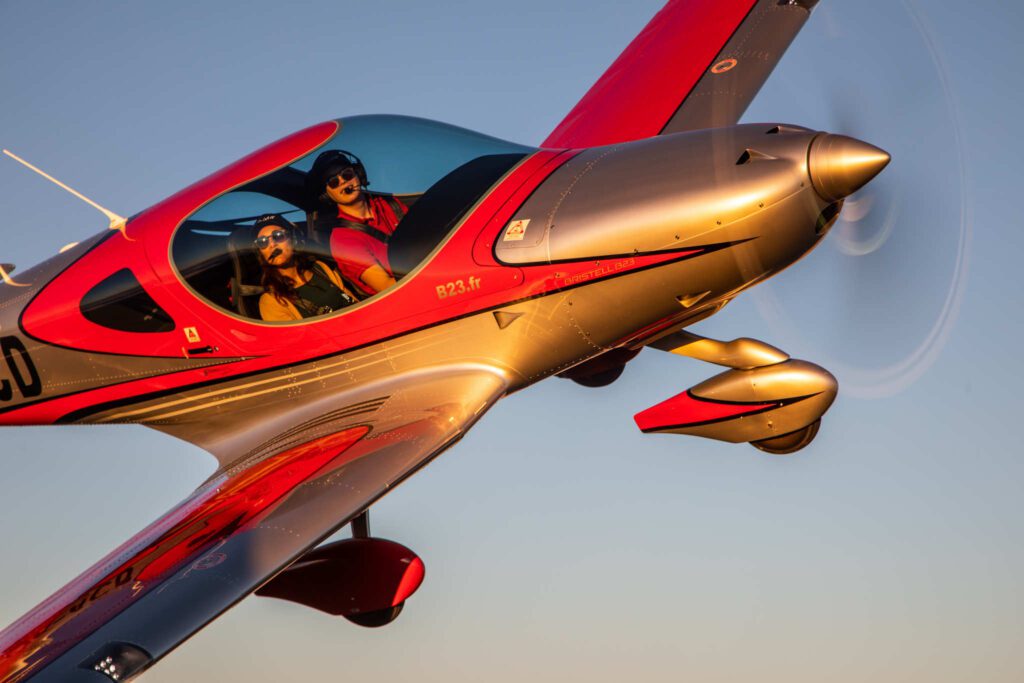

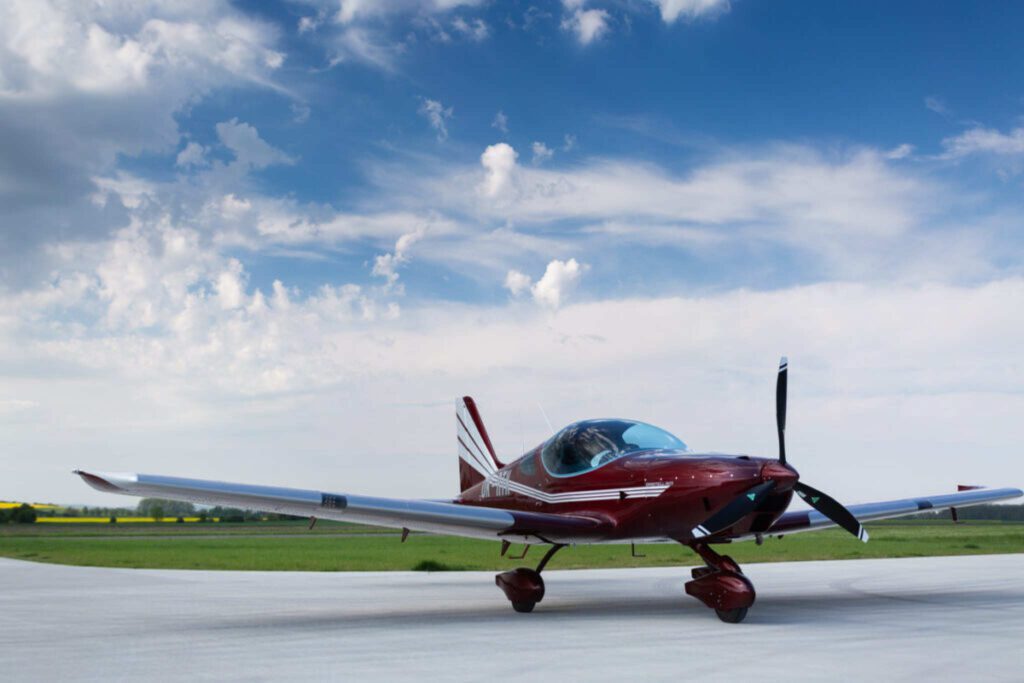

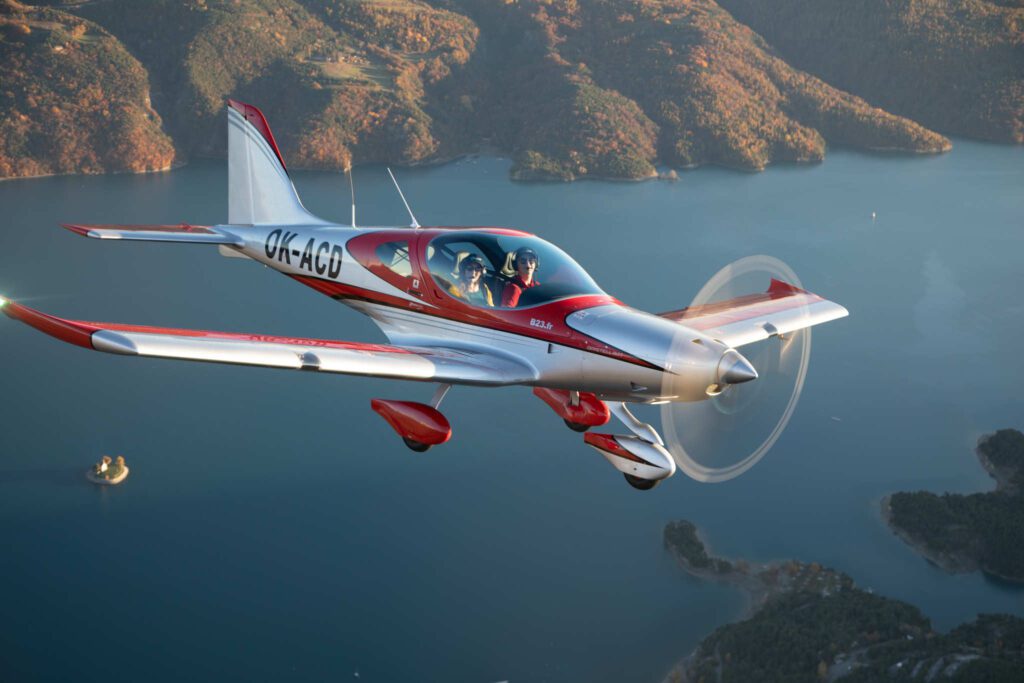

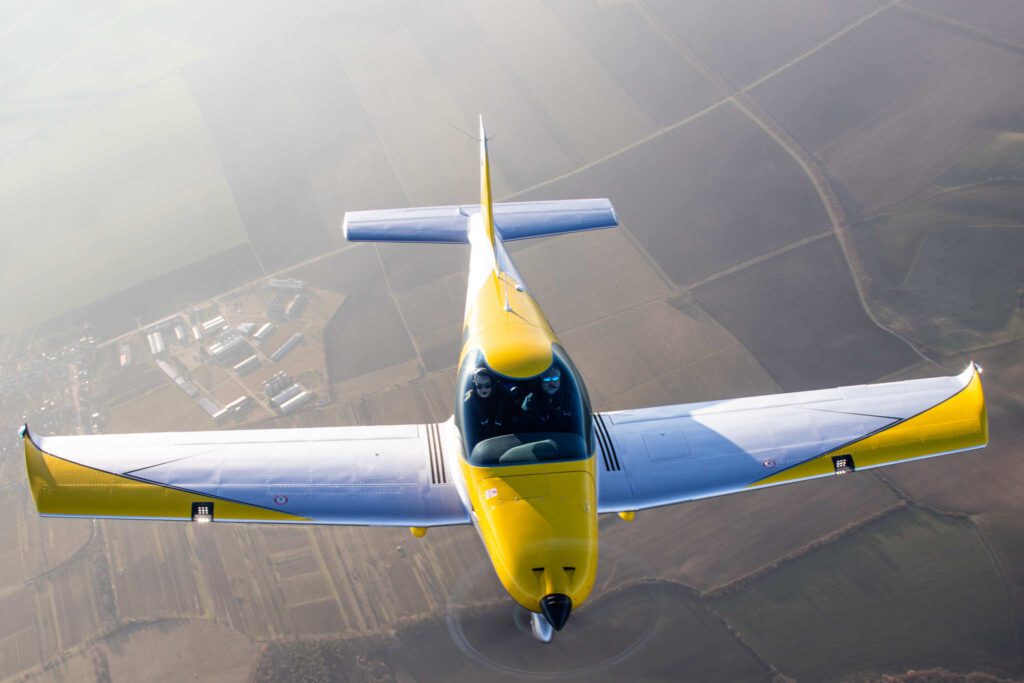

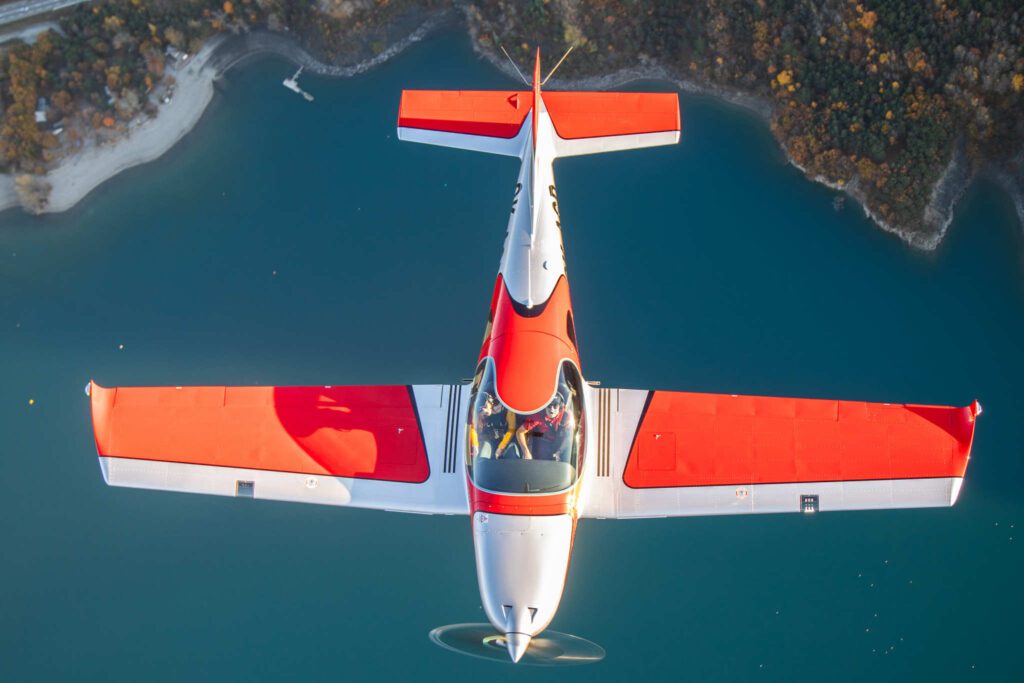

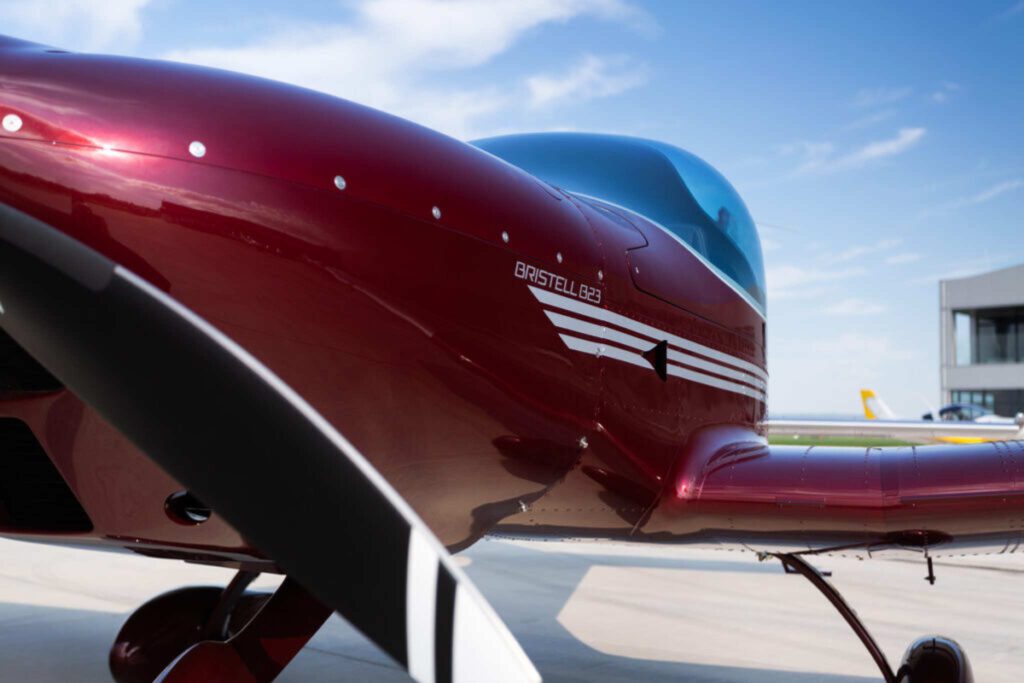

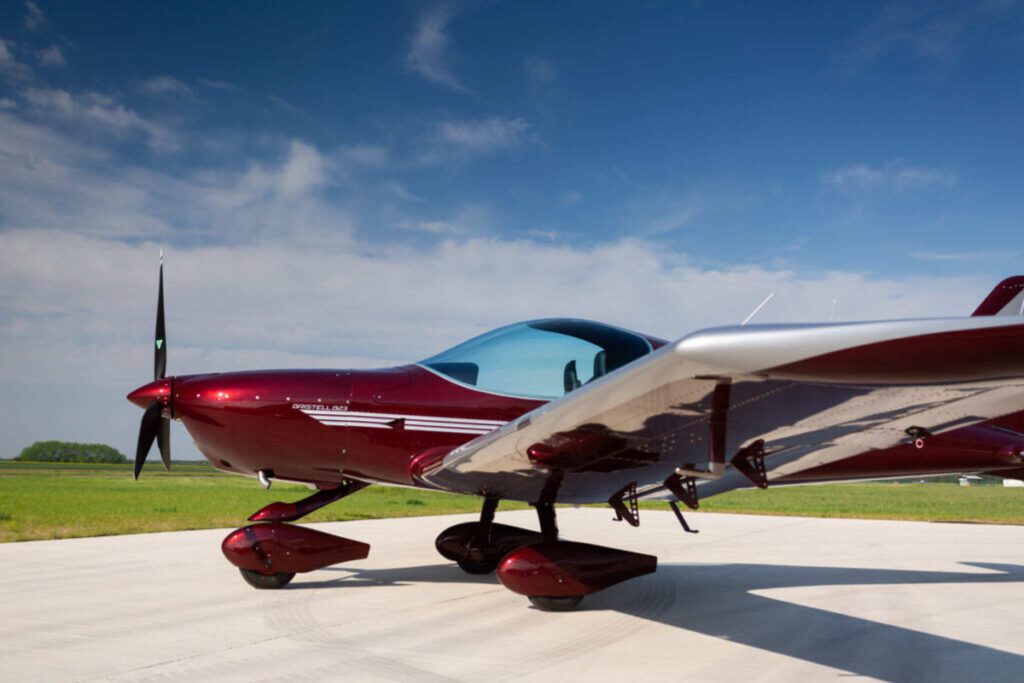

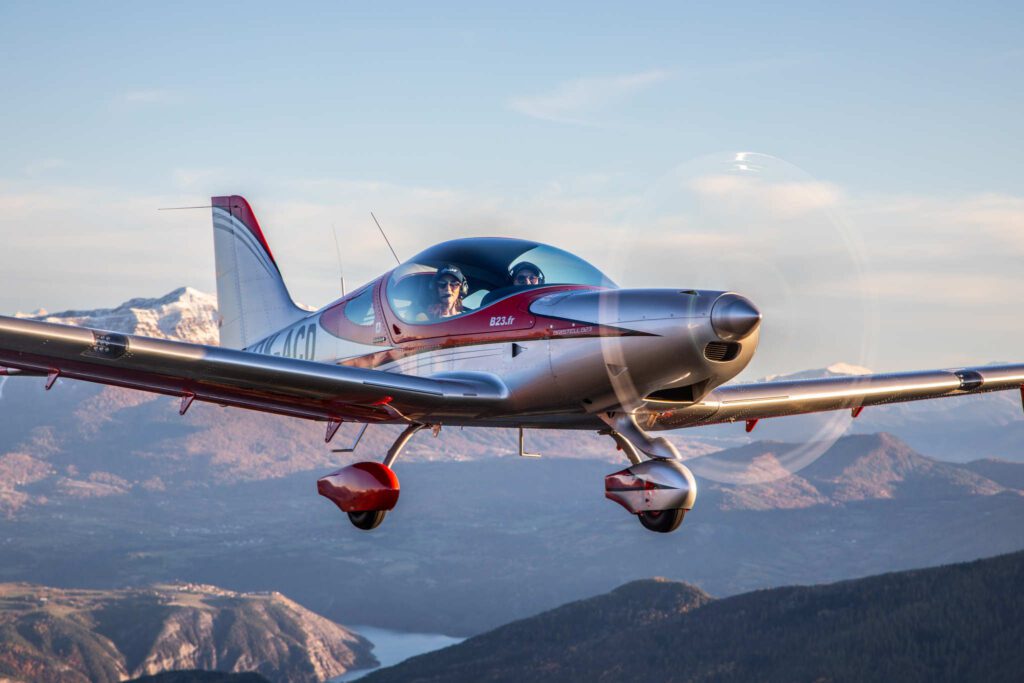

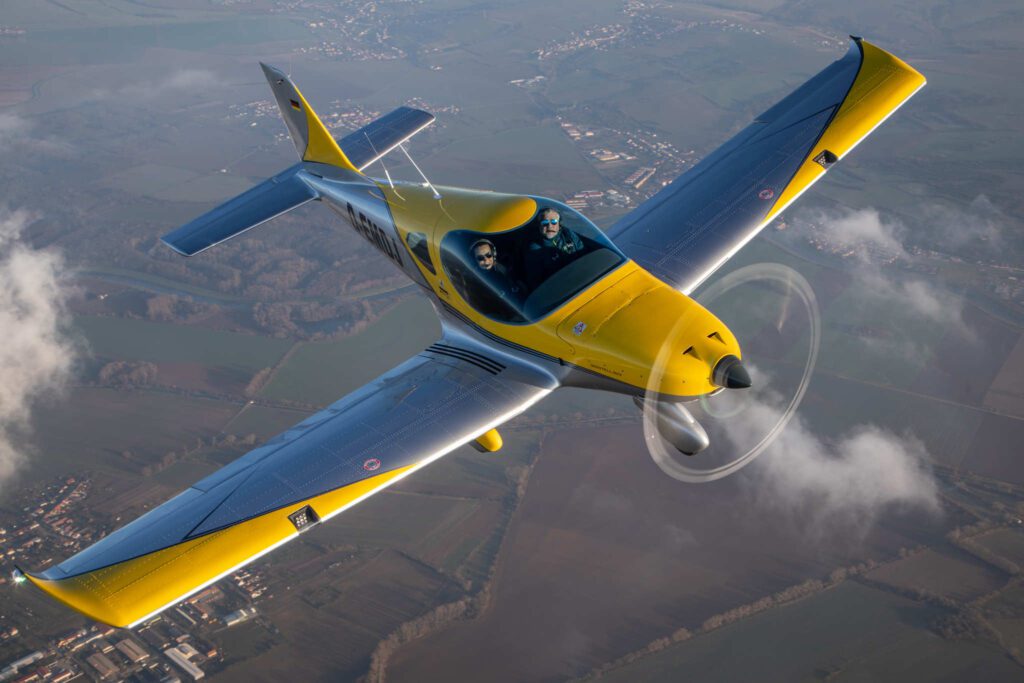

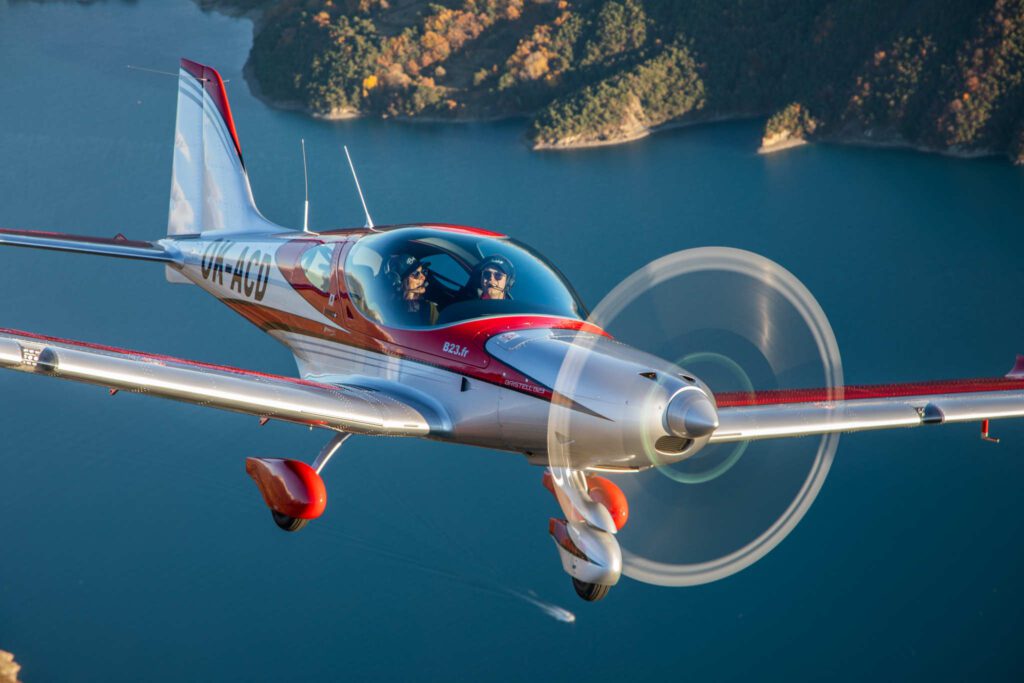

Bristell B23 Turbo: Gallery
